Lenovo D1212 disk array Black
SKU
4587E11
- Versatile, scalable storage expansion with dual Environmental service Module (ESM) configurations for high availability and performance
- Flexible host connectivity to match diverse client needs for direct attach storage with support for 12 Gb SAS RAID adapters for advanced data protection or 12 Gb SAS Host Bus Adapter (HBA) for maximum JBOD performance
- 12 Gb SAS drive-side connectivity with support for 12x 3.5-inch large form factor (LFF) drives in the D1212 enclosure or 24x 2.5-inch small form factor (SFF) drives in the D1224 enclosure
- Scalability of up to 96 LFF or 192 SFF drives per RAID adapter or HBA with the attachment of up to eight D1212 or D1224 daisy-chained expansion enclosures, or a combination of both, to satisfy growing needs for storage capacity and performance
- Flexibility in storing data on high performance SAS SSDs, performance-optimized enterprise SAS HDDs, or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types and form factors on a single RAID adapter or HBA to perfectly meet performance and capacity requirements for various workloads
- Self-encrypting drives with a supported RAID adapter allow clients to secure their sensitive data and to comply with various security regulations when required
- Support multiple host attachments and SAS zoning for storage partitioning
| SKU | 4587E11 |
|---|---|
| EAN | 0889488454228 |
| Manufacturer | Lenovo |
| Availability | Out of Stock |

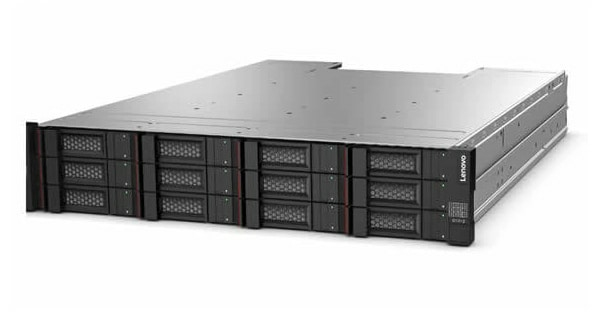

Highlights
SAS zoning support up to 6 hosts with Y cablesA simple, affordable, easy-to-deploy storage expansion solution.Use one D1212 as a stand-alone JBOD, or daisy-chain up to 7 more per SAS Chain. This provides access for up to 96 HDDs or SSDs using only one HBA.Up to 8 D1212 enclosures are supported per SAS ChainEach D1212 contains 12 hot-swap 3.5-inch bays, supporting HDDs and SSDs. This means a maximum of 96 drives/960TB(Risk to change to 768TB)supported per SAS ChainAvailable drives include enterprise-class 10,000rpm SAS HDDs, high-capacity nearline (NL) 7,200rpm SAS HDDs, and high-performance/high-capacity SAS SSDs.Standard models include dual SAS I/O modules. Each module includes three 12Gb SAS ports (IN and OUT)—four total per enclosure. Using only two ports enables an enclosure to be daisy-chained to the ones before and after it. Using both SAS IO modules enables high availability.Integrates seamlessly with all Lenovo servers.High availability via dual I/O modules, redundant PSUs, and hot-swap drives.An effective storage solution for workloads such as data backup, data caching, video surveillance, media streaming, email hosting, server virtualization, file management, and print serving.Ideal for cost-sensitive customers, space-constrained environments, current and future high-capacity needs, and server/storage virtualization. It reduces the burden on over utilized internal server storage, and offers extreme capacity for archive and cold storage solutions.Shares common parts with the D1224 DAS unit for I/O modules and PCMs.

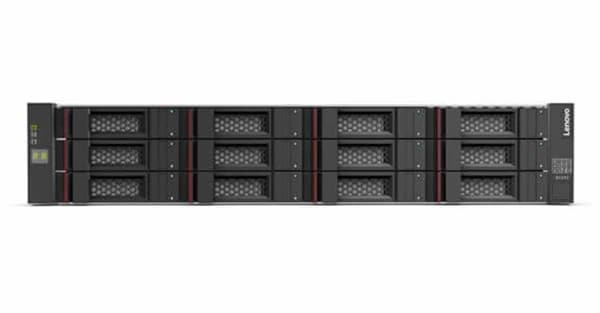

High-performance, high-capacity DAS
The Lenovo Storage D1212 has the flexibility and capacity to handle many different types of workloads. You can start with one D1212 enclosure containing up to 12x 3.5-inch drives as a simple JBOD, and later daisy-chain up to 8 enclosures per SAS Chain (using multiple ports). One chain supports up to 96 drives.Supported drives include 10,000rpm and 7,200rpm HDDs, secure self-encrypting 7,200rpm SED HDDs, and high-performance/high-capacity SSDs for read-intensive workloads. The D1212 supports RAID-0, 1, 10, 5, 50, 6, and 60, using a variety of RAID HBAs. A single chain can contain a combination of HDDs and SSDs with multiple speeds and capacities. If 15,000rpm and 2.5-inch HDDs are required, D1224 expansion units may be included in the chain.

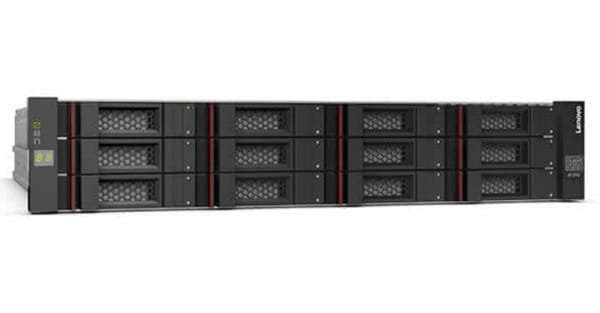

Best value for storage capacity
The D1212 is optimized for performance at an affordable price. High-capacity 3.5-inch NL drives offer up to 120TB* of “cold” or archive storage in only 2U, and 960TB* per SAS Chain in 16U. 10,000rpm 12Gbps SAS drives offer the speed needed for many performance-intensive workloads, and SSDs provide the extreme throughput necessary for the most I/O-intensive jobs, along with high capacity.The D1212 shares common parts with D1224 DAS enclosures. This simplifies servicing and reduces spare parts on hand, helping to reduce costs further. You can also save money on file/storage servers by deploying one server running virtualized environments with up to 960TB* of DAS capacity, rather than using multiple servers with one JBOD apiece.

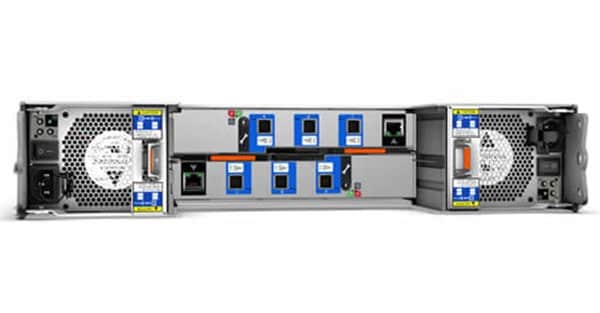

Easy to deploy and highly available
Simply cable-connect new units and they come online immediately (OS-dependent) with instant drive identification. Virtual machines can share these expansion chassis as well.And because storage is useless when it’s offline, the D1212 uses ruggedized components that are designed for 99.999 percent availability, along with hot-swap drives and hot-swap/redundant power supplies for maximum uptime. Redundant I/O modules with failover complete the package.

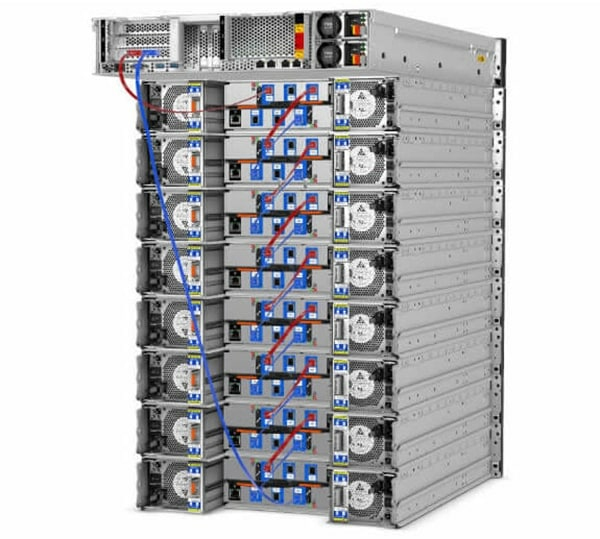

Why Lenovo
Lenovo is a $46 billion global Fortune 500 company and a leader in providing innovative consumer, commercial, and enterprise technology. Lenovo enterprise systems deliver industry-leading performance, reliability, and security in virtualized and cloud environments for analytics, database, virtual desktop, infrastructure, and web workloads. Lenovo also offers simplified and extensible systems management tools so you can manage your infrastructure on your own terms. Consistently ranked #1 in reliability and customer satisfaction, the Lenovo enterprise server, storage, and networking portfolio provides the hardware for businesses that never stand still.
High-Performance, High-Capacity DAS
DAS storage unit. Start with one JBOD, and daisy-chain up to eight per HBA. Mix-and-match high-performance and high-capacity HDDs & SSDs as needed. Redundant.
DAS storage unit. Start with one JBOD, and daisy-chain up to eight per HBA. Mix-and-match high-performance and high-capacity HDDs & SSDs as needed. Redundant.
| Storage | |
|---|---|
| Number of storage drives supported | 12 |
| Storage drive size | 2.5" |
| RAID levels | 0, 1, 5, 10, 50 |
| Supported storage drive interfaces | SAS-3 |
| Technical details | |
| Product colour | Black |
| Certification | BSMI CNS 13438, Class A; CNS 14336 (Taiwan) CCC GB 4943.1, GB 17625.1, GB 9254 Class A (China) CE Mark (European Union) CISPR 22, Class A EAC (Russia) EN55022, Class A EN55024 FCC Part 15, Class A (United States) ICES-003/NMB-03, Class A (Canada) IEC/EN60950-1 KC Mark (Korea) NOM-019 (Mexico) Reduction of Hazardous Substances (ROHS) UL/CSA IEC 60950-1 VCCI, Class A (Japan) |
| Harmonized System (HS) code | 84717020 |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Certification | BSMI CNS 13438, Class A; CNS 14336 (Taiwan) CCC GB 4943.1, GB 17625.1, GB 9254 Class A (China) CE Mark (European Union) CISPR 22, Class A EAC (Russia) EN55022, Class A EN55024 FCC Part 15, Class A (United States) ICES-003/NMB-03, Class A (Canada) IEC/EN60950-1 KC Mark (Korea) NOM-019 (Mexico) Reduction of Hazardous Substances (ROHS) UL/CSA IEC 60950-1 VCCI, Class A (Japan) |
| Hard drive | |
| RAID levels | 0, 1, 5, 10, 50 |
| Weight & dimensions | |
|---|---|
| Width | 17.4" (443 mm) |
| Depth | 24.8" (630 mm) |
| Weight | 57.3 lbs (26 kg) |
| Height | 3.46" (88 mm) |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 100% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84717020 |
