DELL PowerEdge R660XS server 480 GB Rack (1U) Intel® Xeon® Gold 5412U 2.1 GHz 32 GB DDR5-SDRAM 800 W
SKU
VXN4R
Login for pricing
In stock
DELL PowerEdge R660XS, 2.1 GHz, 5412U, 32 GB, DDR5-SDRAM, 480 GB, Rack (1U)
UNSPSC: 43211501
- No OS
- Intel Xeon Gold 5412U (45MB Cache, 2.1GHz)
- 32GB DDR5-SDRAM (2 x 16) & 480GB SSD
- iDRAC9, Datacenter 16G
| SKU | VXN4R |
|---|---|
| EAN | 0884116461623 |
| Manufacturer | DELL |
| Availability | Out of Stock |
| Product Family | PowerEdge |

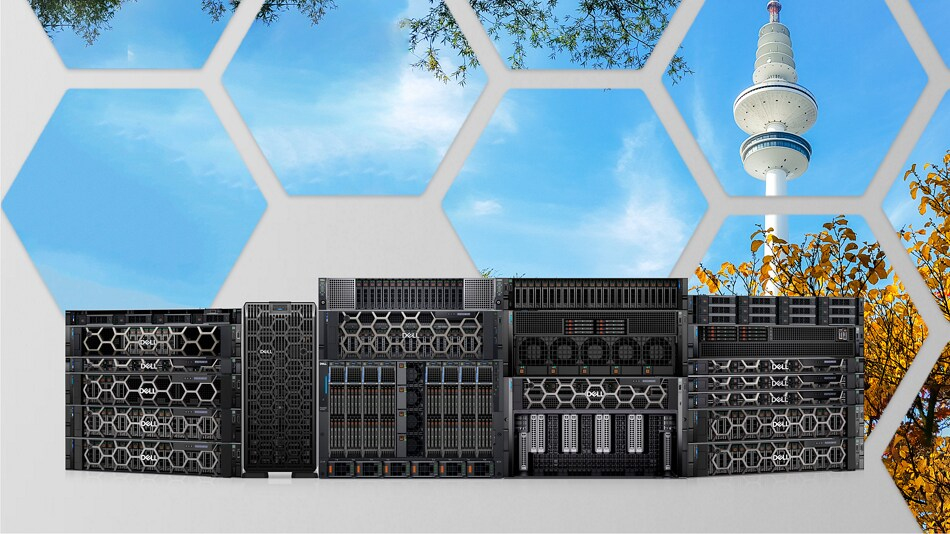

Innovate where you never thought possible
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

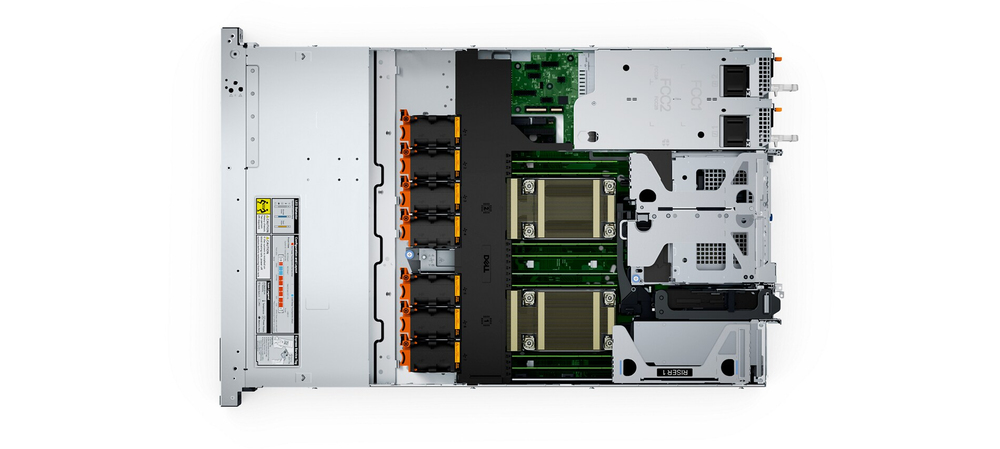

Your innovation engine
The PowerEdge R660xs is a dense air-cooled server that fits into your current infrastructure, supporting the most demanding applications.

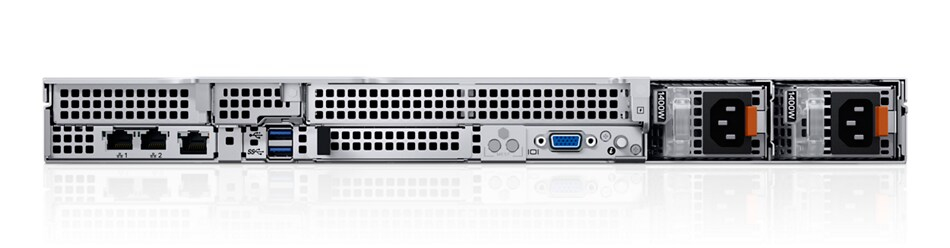

Just right
Strike the right balance between performance and density with this air-cooled server designed for the most popular IT applications.
Add up to two 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 4800 MT/sec (max 1TB)
Next Gen HW SAS4 RAID (PERC12)
Internal NVME BOSS-N1 (2xM.2) for boot
Introduction of Hot Plug redundant fans
Improve data throughput and reduce latency with support up to 5 I/O devices
Up to 3 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot
Storage options include up to 4 x 3.5" HDDs/SSDs; or up to 10 x 2.5" HDDs/SSDs/NVMe
OpenManage systems management
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
Consulting
Consulting services give expert guidance to help you grow, optimise and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.
Support
Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.
Deployment
ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.
Education
Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilise your new technology to its full potential.
DELL PowerEdge R660XS. Processor family: Intel® Xeon® Gold, Processor frequency: 2.1 GHz, Processor model: 5412U. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 2 x 16 GB. Total storage capacity: 480 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 800 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)
| Processor | |
|---|---|
| Processor generation | Intel Xeon Scalable 4th Gen |
| Processor cache | 45 MB |
| Processor frequency | 2.1 GHz |
| Number of processors installed | 1 |
| Processor model | 5412U |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 24 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C741 |
| Processor family | Intel® Xeon® Gold |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 1 TB |
| Internal memory type | DDR5-SDRAM |
| Memory data transfer rate | 4800 MT/s |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 1 |
| Storage | |
| Supported RAID controllers | PERC H755 |
| Number of SSDs supported | 8 |
| Total storage capacity | 480 GB |
| SSD interface | SATA III |
| SSD capacity | 480 GB |
| RAID support | No |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| Hot-Plug support | Yes |
| SSD size | 2.5" |
| Drive writes per day (DWPD) | 1 |
| Supported SSD sizes | 2.5" |
| Network | |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack rails | Yes |
| Optical drive type | No |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Performance | |
|---|---|
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
| Remote administration | iDRAC9, Datacenter 16G |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
| Operating system installed | No |
| Power | |
| Number of redundant power supplies installed | 2 |
| Number of redundant power supplies supported | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Power cable length | 118.1" (3 m) |
| Power cable connector 1 | NEMA 5-15P |
| Power cable connector 2 | C13 coupler |
| Power cable current | 15 A |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Non-operating altitude | 0 - 472440.9" (0 - 12000 m) |
| Management features | |
| Remote administration | iDRAC9, Datacenter 16G |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Rack rails | Yes |
| Hot-Plug support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Rack (1U) |
| Weight & dimensions | |
| Width | 17.1" (434 mm) |
| Height | 1.69" (42.8 mm) |
| Other features | |
| Bytes per sector | 512e |
