DELL Precision 5490 Intel Core Ultra 7 165H Mobile workstation 14" Full HD+ 32 GB LPDDR5x-SDRAM 512 GB SSD NVIDIA RTX 1000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro Gray
SKU
X8G6W
Login for pricing
In stock
DELL Precision 5490, Intel Core Ultra 7, 14", 1920 x 1200 pixels, 32 GB, 512 GB, Windows 11 Pro
UNSPSC: 43211503
- Windows 11 Pro 64-bit
- Intel Core Ultra 7 165H (24MB Cache)
- 35.6 cm (14") Full HD+ 1920 x 1200 WVA, NVIDIA RTX 1000 Ada (6GB GDDR6)
- 32GB LPDDR5x-SDRAM & 512GB SSD
| SKU | X8G6W |
|---|---|
| EAN | 0884116471721 |
| Manufacturer | DELL |
| Availability | Out of Stock |
| Product Family | Precision |
| Product Series | 5000 |

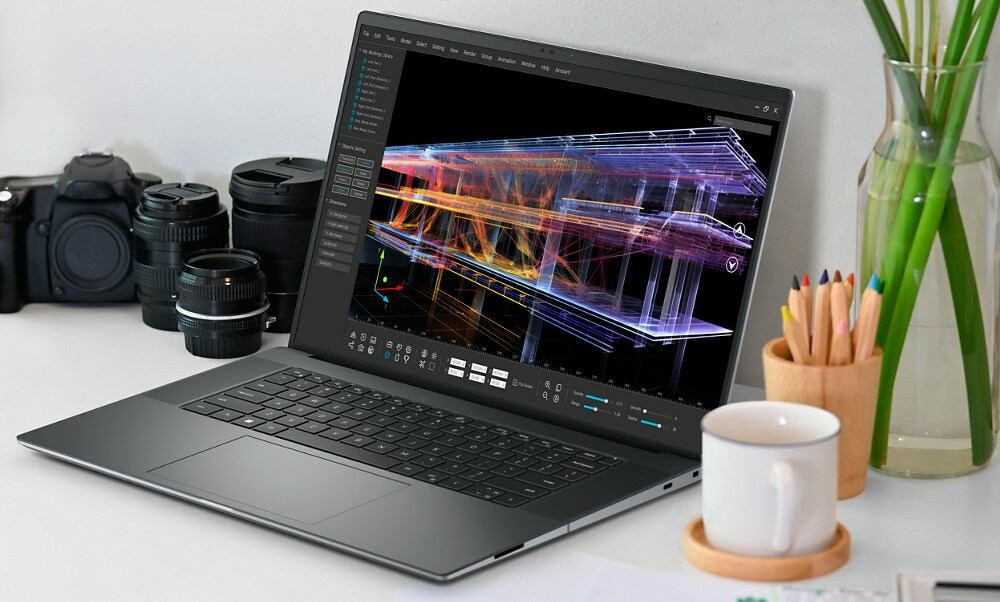

Intelligent performance
Processor
Featuring the unique combined AI-engine of CPU, integrated Intel® Arc graphics GPU, and dedicated low-power AI engine NPU with Intel® AI Boost, and Intel vPro® options.
Graphics
Up to NVIDIA RTX™ 3000 Ada graphics, plus faster integrated Intel Arc graphics.
Scalable memory
Up to 64GB of 7467 MT/s, LPDDR5x dual channel memory.
Storage capabilities
1x M.2 2280 slot with PCIe Gen 4x4 support (up to 4TB).
Battery
Long battery life with 72 Whr long Life cycle option.
Connectivity
Flexible connectivity with WiFi 7 options .

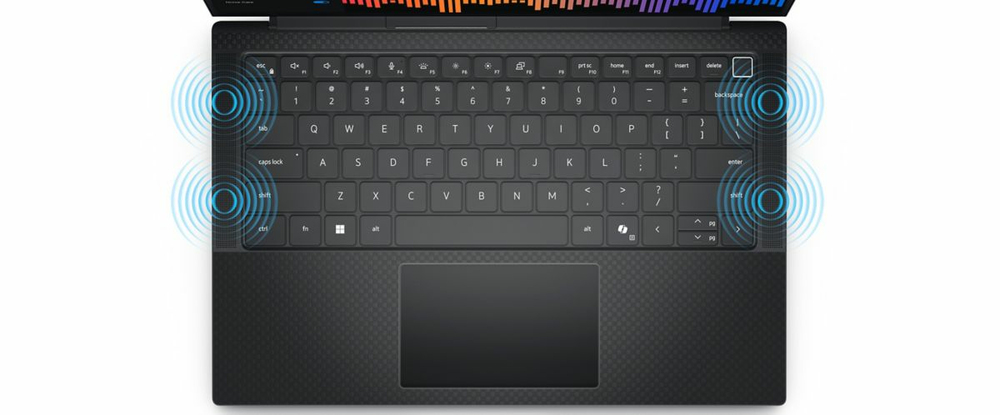

Outstanding user experience
Experience
The 5490 is set with a large trackpad, dual array mics, four premium speakers, and optional Touch screen with Active Pen support.
Capture
HD IR camera complete with ambient light sensor and Windows Hello.
View
Expansive and stunning the 5490 has a 16:10 display with up to QHD+, 100% sRGB, 500nits brightness, and PremierColor. Complete with ComfortView Plus options to reduce blue light emissions.

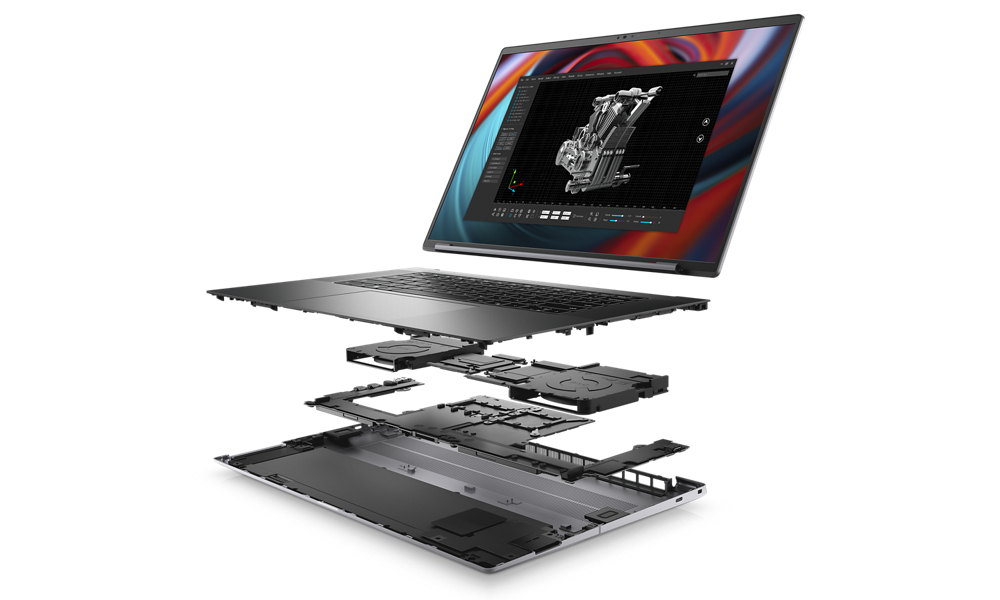

Power to create your masterpieces
Built for work and design with creative applications like:
Design - 2D, 3D CAD
Content creation
Production
Photo, video and audio editing
Web Design
Graphic Design
AI at your fingertips
Next-level computing: Intel® Core™ Ultra processors enable AI-powered efficiency with AI accelerators within the world’s most intelligent commercial PCs featuring Intel® AI Boost, with vPro options and Copilot in Windows 11. Enjoy power-efficient performance for business workloads with this new CPU, GPU, and NPU three tier multi-processing architecture.
Time saver: Effortlessly jumpstart your workflow with the Copilot Hardware Key on your device, saving you time by providing quick access to the tools you need to start your workday.
AI-accelerated apps: Apps using AI run fast and smooth thanks to the dedicated NPU, so you can enjoy efficient:
Collaboration: Use up to 38% less power when using AI-enhanced collaboration tools during Zoom calls .
Creativity: 132% faster performance when running on-device AI photo editing on Adobe .
Security: Detect malware with less than 1% CPU utilisation using CrowdStrike .
Intelligent collaboration: Users enjoy smoother collaboration with AI-boosts that make Windows Studio Effects even better, with features like smart framing and noise suppression that don’t impact overall system performance.
Personalised performance: Dell Optimizer automatically responds to your workstyle with advance privacy features and built-in AI that optimises audio connectivity, productivity and configurability, all in one software.
Independent Software Vendor (ISV) certification
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly .
Security
Windows Hello Compatible IR camera recognises you, increasing privacy and productivity.
Fingerprint reader Uses biometrics to log you in to Dell Safeguard and response.
Detect and prevent cyber attacks Dell Safe Data Prevent data breaches.
SecureWorks responds to security incidents with Safe-mute.
Dell Peripheral manager intelligent mic muting and video disabling.
VR and AI Compatibility
VR and AI capabilities allow you to experience fully-immersive content. Powerful enough for gaming, education, entertainment, and exploring the digital world. Precision 5490 has next generation professional graphics and powerful performance normally found only in tower workstations.

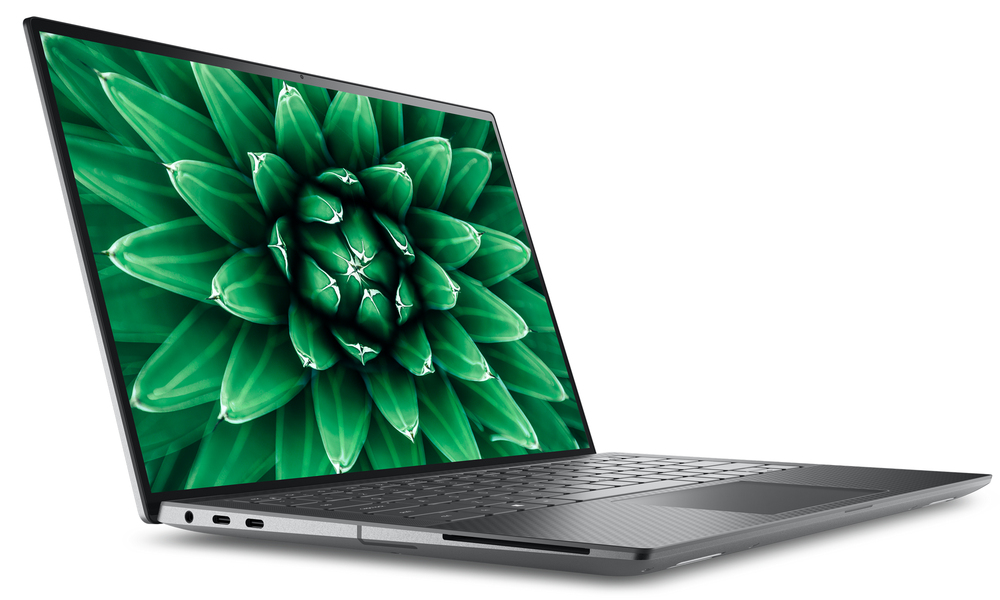

Advancing sustainability
Designed with sustainable materials
This Precision workstation incorporates up to 35% post-consumer recycled plastic content in various components including the LCD bezel, cable covers and keyboard frame .
Elevated Standards
Meeting environmental standards demonstrates how our products adhere to energy-efficiency and other extensive climate-related standards. This workstation is certified ENERGY STAR ® 8.0, TCO certified Generation 9, and EPEAT Gold registered with Climate+ .
Innovative packaging
This workstation ships in packaging made with 100% recycled or renewable materials that is also 100% recyclable .
Dell APEX PC-as-a-Service
Accelerate anywhere work experiences with customisable plans to help you deploy, manage, support devices. Leverage both the built-in protections of our secure commercial PCs and software protections for advanced threats to help ensure a trusted workplace for a predictable price per month.
DELL Precision 5490. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 165H. Display diagonal: 14", HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA RTX 1000 Ada. Operating system installed: Windows 11 Pro. Product color: Gray
| Design | |
|---|---|
| Product type | Mobile workstation |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Gray |
| Display | |
| HD type | Full HD+ |
| Pixel density | 161 ppi |
| Panel type | WVA |
| LED backlight | Yes |
| Display brightness | 500 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 14" |
| Anti-glare screen | Yes |
| Maximum refresh rate | 60 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor model | 165H |
| Processor boost frequency | 5 GHz |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Efficient-core base frequency | 0.9 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core Max Turbo Frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-cores | 2 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory | |
| Memory form factor | On-board |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory data transfer rate | 7467 MT/s |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Total storage capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 6 GB |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Arc Graphics |
| Discrete graphics card model | NVIDIA RTX 1000 Ada |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| Audio | |
| Number of microphones | 2 |
| Number of built-in speakers | 4 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Video capturing speed | 30 fps |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Thunderbolt 4 ports quantity | 4 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Hall sensor | Yes |
| Keyboard | |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Technical details | |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Gray |
| Discrete graphics card memory | 6 GB |
| Sustainability certificates | ENERGY STAR, TCO |
| Battery | |
| Number of battery cells | 4 |
| Battery capacity | 72 Wh |
| Battery recharge time | 4 h |
| Battery voltage | 15.4 V |
| Fast charging | Yes |
| Battery weight | 10.1 oz (285 g) |
| Power | |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| Security | |
| Password protection | Yes |
| Cable lock slot type | Wedge |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -598.4 - 120000" (-15.2 - 3048 m) |
| Non-operating altitude | -598.4 - 420000" (-15.2 - 10668 m) |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, TCO |
| Weight & dimensions | |
| Width | 12.2" (310.6 mm) |
| Depth | 8.28" (210.3 mm) |
| Height (front) | 0.295" (7.49 mm) |
| Height (rear) | 0.748" (1.9 cm) |
| Weight | 3.28 lbs (1.49 kg) |
| Packaging data | |
| Cables included | AC |
| Other features | |
| Ambient light sensor | Yes |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| On-board graphics card | Yes |
| Anti-glare screen | Yes |
| Sensors | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Packaging content | |
| Cables included | AC |
